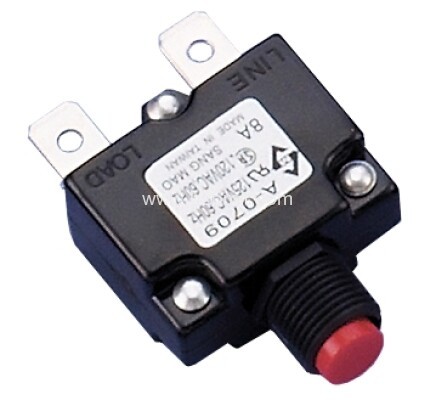

| Product name | Miniature Circuit Breaker / Overload Protector |
|---|---|
| Place of origin | TAIWAN |
| Brand name | SANG MAO |
| Model number | A-0709HP |
| Current | 3 - 20 A |
| Voltage | 24 VDC / 125 VAC / 250 VAC |
| Reset | Manual Push Reset |
| Certificate | UL / CSA |
| STANDARD RATING | 3 - 20AMPERE. |
|---|---|
| INPUT POWER | 24VDC /125VAC / 250VAC. |
| DIELECTRIC STRENGTH | 1500 VAC / 1 MINUTE. |
|
RATED CONDITIONAL SHORT-CIRCUIT CURRENT |
IEC-60934 "PC. 1 1000A" WITH " FUSE 16 A gL / gG" . |
| INSULATION RESISTANCE | > 100 MΩ. |
| RESET | MANUAL PUSH RESET. |
| U L APPROVAL | 4 - 15A 125 / 250 VAC |
|---|---|
| CSA APPROVAL | 3 - 15A 120VAC, 60Hz TC2, OL0, SC:C1, 1kA, 125VAC |
|
GENERATOR |
|---|
|
POWER STRIP |
|
COMMON PROTECT |
Key Features:
- Single pole thermal circuit breaker in a miniaturized design.
- AC/DC rated protection.
- Easy and quick reset after tripping due to overcurrent.
- Available in various threaded and bushings.
- Quick connect terminals
- Applications in AC & DC motor、generator、power strip、power tools、industrial equipment、power generators、UPS、common protect appliances.
